O'BRYAN 614 BEAST Road
GRADER
The O’Bryan 614 Road Grader is a truly unique machine engineered to bring all the functions of a conventional motor grader to your tractor.
With features including left and right lift, blade rotation, crowd and side shift, steering, and rippers, the 614 Road Grader delivers exceptional control, versatility, and grading capability for a wide range of farm and civil applications.
For added flexibility, the 614 Road Grader offers blade width extensions from 14 foot to 18 foot, while optional box wings convert the blade into a highly effective 18 foot box grader.
Built with 20.5-25 tyres, large 10 stud hubs, and a heavy duty chassis, the 614 combines rugged durability with unmatched versatility, making it the ultimate all-rounder on the farm.
Specifications

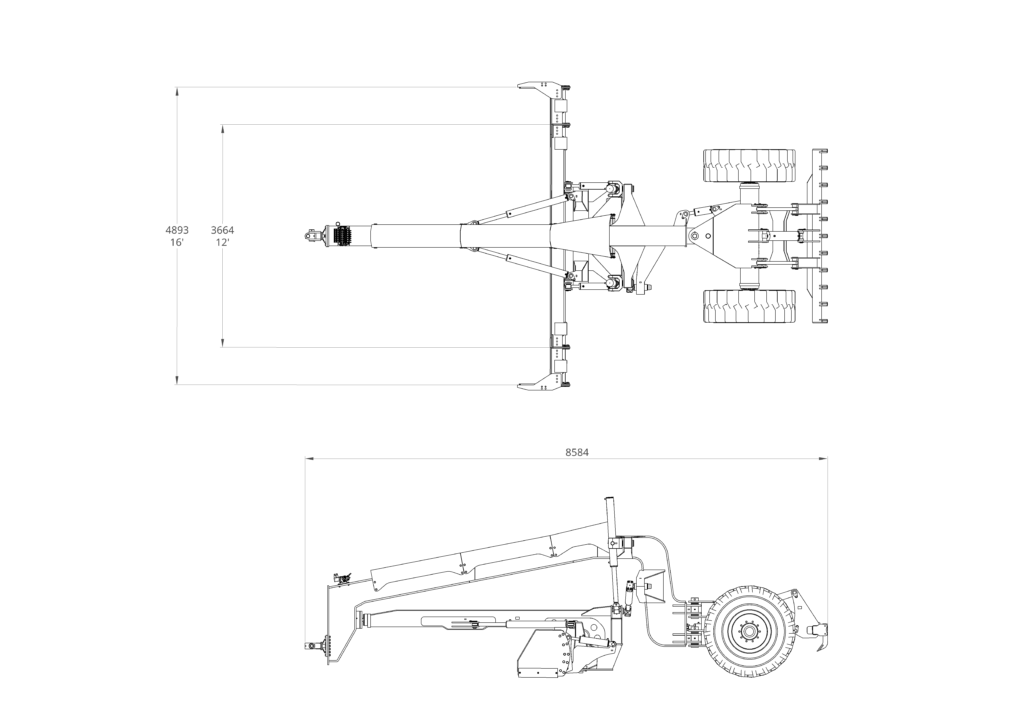

Grader Width | 4200 mm > 5400 mm |
Grader Length | 8250 mm |
Grader Height | 2930 mm |
Grader Weight | 8,500kg |
Cutting Edge Width | 14 Foot |

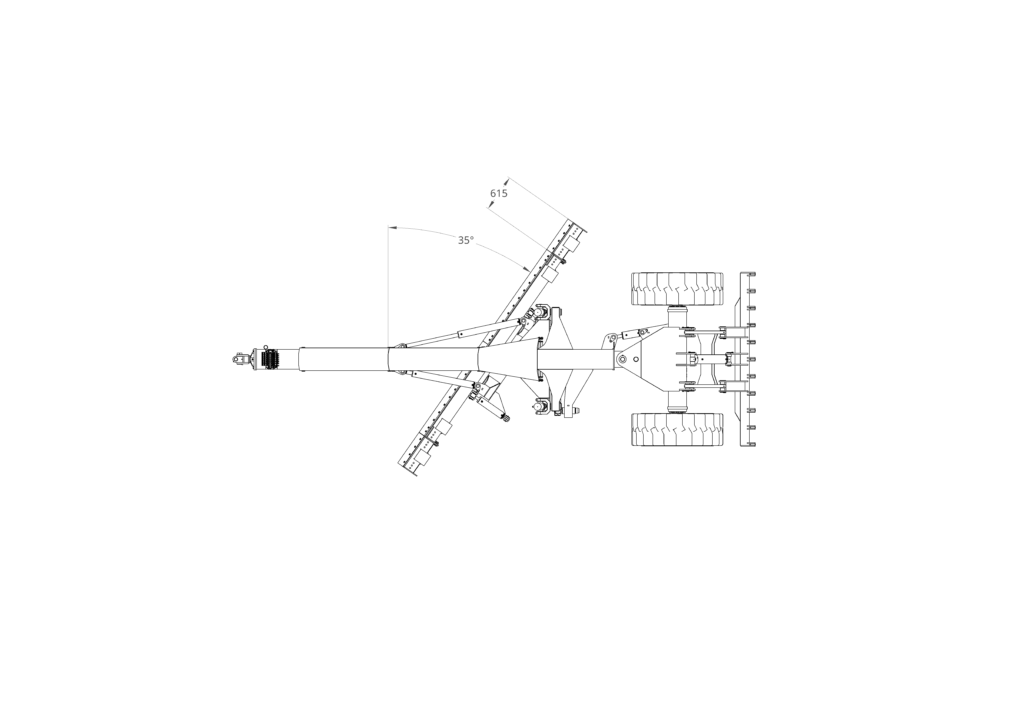

Blade Angle | 35 Degrees |
Tyre Size | 20.5-25 |
HP Required | 450 Hp+ |
Tractor Remotes | 4 Required |
